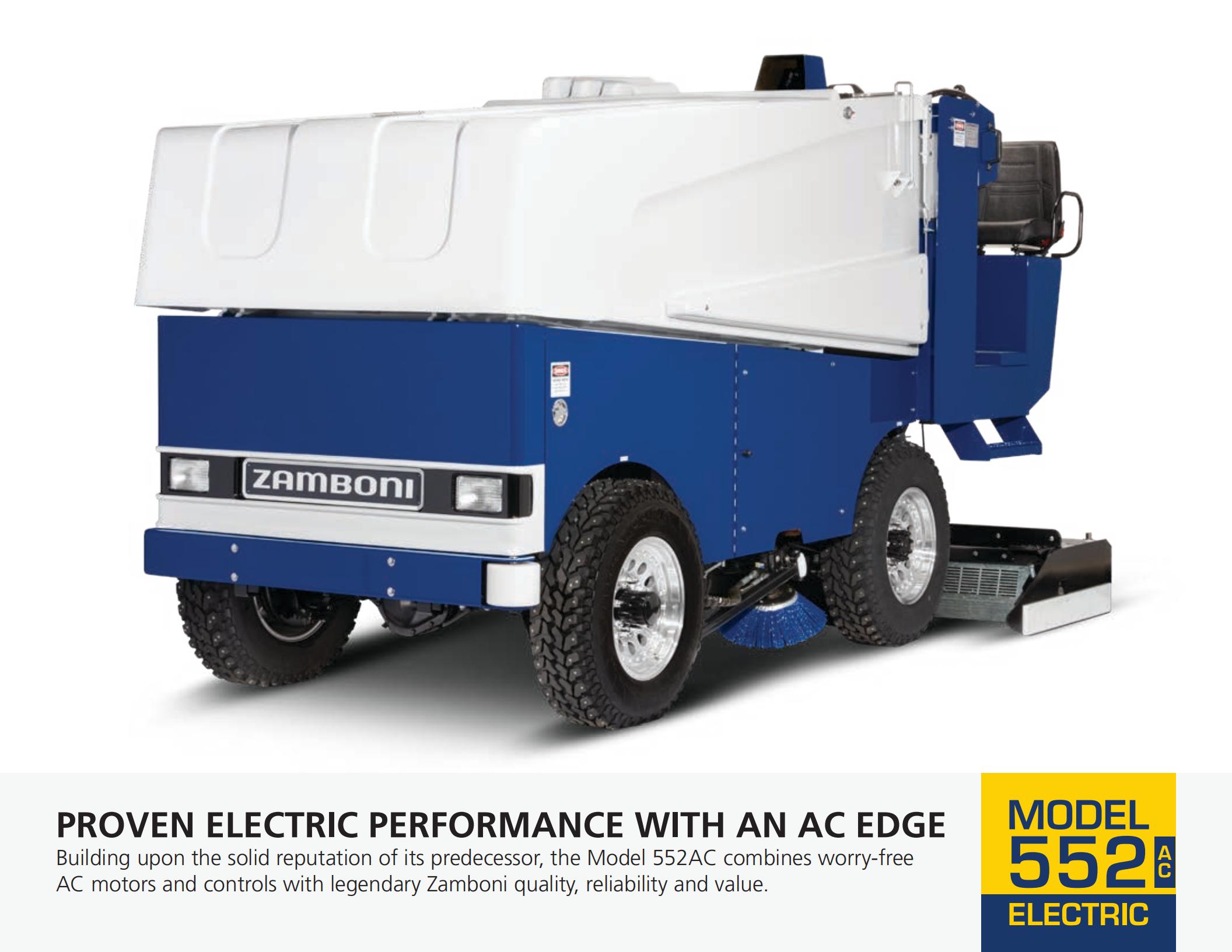

ZAMBONI 552 AC

RESURFACE, RECHARGE, REPEAT...

Zero battery maintenance and lithium-ion power combine for the ultimate upgrade to the world’s most popular electric ice resurfacer



BATTERY AND CHARGER Lithium-ion batteries charge quickly between resurfacings, eliminating overnight charging. Sealed zero maintenance batteries are truly emission-free. Charging is controlled by battery management system to optimize charging and balancing.

ELECTRONIC CONTROLS

On-dash multi-function display features a battery discharge indicator, hour meter and diagnostic information. Dependable Sevcon® Gen4 controls are proven in tough industrial applications.

DRIVETRAIN

Four-wheel drive with rugged Dana Spicer® axles and a 24 hp traction motor, providing the most reliable drivetrain in the industry.

HYDRAULICS

11 hp AC pump motor provides optimum power and reduced energy consumption for smooth and consistent operation.

CONSTRUCTION

Robust hand-welded steel tubing chassis and rust-free poly water tanks for durability in the harsh environment it will call home.

GLOBAL SERVICE AND SUPPORT

Zamboni Customer Service and a network of Zamboni Authorized Distributors provide exceptional and accessible service and support worldwide







Key Data
  • Ice Surface: Up to 200 ft. x 100 ft.

  • Battery Icon

    Battery:  210 Ah / 315 Ah Lithium-ion
     510 Ah Lead Acid

  • Snow Tank Capacity Icon

    Snow Tank Capacity: 125 cu. ft.

  • Ice Making Water Tank Capacity Icon

    Ice Making Water Tank Capacity: 195 gal.

  • Blade Length Icon

    Blade Length: 77 in.
